UCLEnhance is a program for the enhancement of the intelligibility of speech recordings. The program incorporates a number of standard techniques for manipulating the overall amplitude of the signal and for the removal of steady-state additive noise. However, the program is unusual in its ability to detect and enhance selective regions of the speech signal based on their phonetic properties. This phonetically-sensitive method of enhancement was developed and evaluated in the Department of Phonetics and Linguistics at University College London under two research project grants funded by the UK Engineering and Physical Sciences Research Council.

For information about the scientific basis for the phonetic enhancement method, please refer to the publications listed in the Learn more section.

UCLEnhance is a simple application that is complete in itself but which is also designed to be compatible with the Speech Filing System (SFS) tools for speech research.



  • New file. Use to clear the current display to prepare for a new recording.
  • Open file. Use to open an existing signal file stored on disk. Supports standard Microsoft RIFF format (.WAV files) as well as SFS file format.
  • Save Original Signal. Use to save a new recording to a disk file, or to save an existing signal file under a new name. Both WAV and SFS file formats are supported. Saving to an existing SFS file does not overwrite other data in the file.
  • Save Enhanced Signal. Use to save the enhanced signal to a file. Both WAV and SFS file formats are supported. Saving to an existing SFS file does not overwrite other data in the file.
  • Print. Use to reproduce the current display on the printer. Note that printouts are produced in landscape format by default. Cursors are not printed.
  • Record. Use to record a new speech signal. Selection of the input device and input sensitivity must be made through the use of the system volume controls, see recording below.
  • Play Original. Use to replay the region of the original signal displayed or between cursors. Selection of the output audio device and volume must be made through the use of the system volume controls.
  • Play Enhanced. Use to replay the region of the enhanced signal displayed or between cursors. Selection of the output audio device and volume must be made through the use of the system volume controls.
  • Enhance. Brings up the dialogue where the enhancement settings can be made.
  • Waveform. Use to display an amplitude waveform graph of the speech signal. See Displays.
  • Wideband Spectrogram. Use to display a wide bandwidth spectrogram of the speech signal. This is calculated dynamically from the speech signal as required. See Displays.
  • Annotations. Use to label the phonetic events discovered by the phonetic enhancement method.
  • Scroll left (Left arrow). Use to move the display to an earlier part of the signal.
  • Zoom in (Down arrow). Use to focus the display on a smaller section of the displayed signal. To zoom in, first set the area of interest with left and right cursors.
  • Zoom out (Up arrow). Use to undo one level of zoom.
  • Scroll right (Right arrow). Use to move the display to a later part of the signal.

Other menu options

  • Signal Statistics. This option displays some statistics about the original and enhanced signals, such as their range and power. See the Statistics section for details.
  • Replace Original. This option replaces the currently original signal with the current enhanced signal. Take care, there is no way of going back! You are advised to save the original signal before using this option.


With a waveform loaded and displayed, you can set left and right cursors using the left and right mouse buttons. The left cursor is blue, the right cursor is green. These cursors indicate the start and stop time for various operations:

  • for replay the signal replayed is the region between the cursors.
  • for zoom in the region between the cursors is expanded to fill the display.
  • for scroll left the right cursor becomes the new right edge of the display.
  • for scroll right the left cursor becomes the new left edge of the display.


Most PCs have two input lines, one designed for a microphone input and one designed for a 'line' level input (from e.g. a tape recorder). Some PCs are also able to record output from audio CDs played in the computer. Once your signal source is connected to the computer, you need to select it using the Volume Control application. This can be found under the Start/Programs/Accessories/Multimedia menu on Windows 95/98/NT systems.

To record from a microphone:

  1. ensure that it is connected to the microphone input to the PC.
  2. ensure that the microphone input device is selected in volume control.
  3. ensure that the input volume and overall record volume are at moderate levels.
  4. request the record menu option in UCLEnhance and select 'Test Levels' to check that signals are getting to the program.
  5. adjust the volume controls so that at no time does the peak level reach the right hand side of the display when recording.
  6. select 'Record' to record the signal, 'Stop' once complete, and then 'OK'. The waveform should be displayed in the main window.

In the record dialogue, you can adjust the recording quality by changing the sampling rate. The default rate of 16000 samples per second with 16-bit resolution has been chosen to be most useful for the production of speech spectrograms. Not all PCs support acquisition at 16000 samples per second. You may find it necessary to record at 22050 samples/second or at 11025 samples/second. UCLEnhance does not support recording using old 8-bit resolution cards although it can load 8-bit waveforms recorded by other applications.



A waveform is a graph of signal amplitude (on the vertical axis) against time (on the horizontal axis). Conventionally, the zero line is taken to mean no input: in terms of a microphone this would imply that the sound pressure at the microphone was the same as atmospheric pressure. Positive and negative excursions can then be considered pressure fluctuations above and below atmospheric pressure. For speech signals these pressure fluctuations are very small, typically less than +/- 1/1000000 of atmospheric pressure. The amplitude scale used on waveform displays merely records the size of the quantised amplitude values captured by the Analogue-to-Digital converter in the PC. These have a maximum range of -32,768 to +32,767. If you observe values close to these on the display, it is likely that the input signal is overloaded.

Wideband spectrogram

A spectrogram is a display of the frequency content of a signal drawn so that the energy content in each frequency region and time is displayed on a grey scale. The horizontal axis of the spectrogram is time, and the picture shows how the signal develops and changes over time. The vertical axis of the spectrogram is frequency and it provides an analysis of the signal into different frequency regions. You can think of each of these regions as comprising a particular kind of building block of the signal. If a building block is present in the signal at a particular time then a dark region will be shown at the frequency of the building block and the time of the event. Thus a spectrogram shows which and how much of each building block is present at each time in the signal. The building blocks are, in fact, nothing more than sinusoidal waveforms (pure tones) occuring with particular repetition frequencies. Thus the spectrogram of a pure tone at 1000Hz will consist of a horizontal black line at 1000Hz on the frequency axis. Such a signal only contains a single type of building block: a sinusoidal signal at 1000Hz.

Wideband spectrograms use coarse-grained regions on the frequency axis. This has two useful effects: firstly it means that the temporal aspects of the signal can be made clear - we can see the individual larynx closures as vertical striations on a wide band spectrogram; secondly it means that the effect of the vocal tract resonances (called formants) can be seen clearly as black bars between the striations - the resonances carry on vibrating even after the larynx pulse has passed though the vocal tract. The bandwidth for the wideband display is fixed at 300Hz.


These statistics are displayed by the option Signal/Statistics:

  • Number samples. A digital signal is comprised of a number of discrete amplitude values, representing the amplitude of the original signal at small equally-spaced intervals of time. This value tells you the total number of amplitude samples.
  • Sample rate. This tells you how many sampling intervals fit into one second; or in other words how many samples would make up a recording lasting one second.
  • Range. This tells you the size of the smallest and the largest sample. Note that the program stores waveforms in a 16-bit binary format which naturally limits the amplitude to a maximum range of -32768 to +32767.
  • RMS level. This value is an estimate of the average power in the non-silent portions of the signal. This is not the same as the average power over the whole signal since that would change if significant amounts of silence were added or removed from the recording. This method divides the signal up into 25ms chunks or "windows" and discards windows which are more than 50dB below the window with the largest power. Average power is then calculated over the remaining windows. Power is measured with respect to a sinusoidal signal of maximum amplitude (i.e. peak amplitude of 32767 units) and hence is usually negative.
  • Speech level. This value is an estimate of the average power in the parts of the signal where speech is present. As for the RMS level above, this method discards quiet regions from the calculation. It also measures power with respect to a maximal sinusoidal signal. The method is an implementation by Laurie Moye (now at 2020Speech Ltd) of CCITT Recommendation ITU-T-P56, which was derived from UK Post Office Speech Voltmeter No.6. It is made available under the following licence arrangement:
     * (C)    Crown Copyright $Date: 1998/07/09 16:13:00
     *  This SV6 Speech Voltmeter Computer Program (sv6.c, sv6.h and
     * sv6_funcs.c) is subject to Copyright owned by the United Kingdom
     * Secretary of State for Defence acting throught the Defence
     * Evaluation and Research Agency (DERA). It is made available to
     * Recipients with a royalty-free licence for its use, reproduction,
     * transfer to other parties and amendment for any purposes not
     * excluding product development provided that any such use et cetera
     * shall be deemed to be acceptance of the following conditions:-
     *  (1) Recipients of original or amended forms of it shall ensure
     * that this Notice is reproduced upon any copies or amended versions
     * of it;
     *  (2) Any amended version of it shall be clearly marked to show both
     * the nature of and the organisation responsible for the relevant
     * amendment or amendments;
     *  (3) Its onward transfer from a Recipient in original or amended
     * form to any other party shall be free of any charge or other
     * obligation to provide a benefit in return and shall be deemed to be
     * that party's acceptance of these conditions;
     *  (4) Recipients of original or amended forms of it accept that DERA
     * gives no warranty or assurance as to its quality or suitability for
     * any purpose or the like of results obtained using it and DERA
     * accepts no liability whatsoever in relation to any use to which it
     * may be put.
  • Speech activity. This value reports what fraction of the signal was considered to be speech by the Speech Level calculation.


Automatic Gain Control

The Automatic Gain Control (AGC) enhancement functions modify the overall amplitude of the signal. There are two AGC options:

  • RMS Level. The RMS (root mean square) level automatic gain control modifies the overall level of the signal such that the RMS level of the signal is approximately -20dB below the maximum signal level that can be recorded in a 16-bit linearly quantised signal. The RMS level is based on the average power in the non-silent regions of the signal, see statistics.
  • Speech Level. The Speech Level automatic gain control modifies the overall level of the signal such that the Speech Level of the signal is approximately -20dB below the maximum signal level. Speech Level is based on the average power in the regions of the signal where speech is present, see statistics.

Amplitude Compression

The Amplitude Compression enhancement function modifies the relative amplitudes of different regions of the signal. It tends to make the signal more "even" in amplitude by increasing the amplitude of quiet regions while leaving louder regions unchanged.

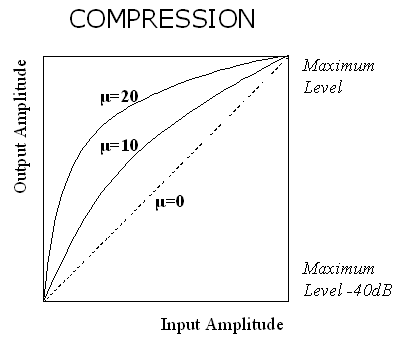

This implementation divides the signal into short overlapping windows of about 30ms and applies a "µ-law" amplitude mapping to each window as shown in the diagram below (not to scale).
